What are MIL-C-24217 Connectors?

Meet the Connector: Mil-C-24217 Connectors

MIL-C-24217 is the U.S. military specification for rugged, metal-shell electrical connectors.  Designed for deep submergence submarine applications.

MIL-C-24217 is the U.S. military specification for rugged, metal-shell electrical connectors designed for U.S. Navy deep submergence submarine applications. They are made to withstand hydrostatic pressures up to 10,000 psi and are used for underwater sensors, deep-sea equipment, and dry-mate applications that require high reliability.

Connector types include straight plugs and right-angle plugs, available with mating weld receptacles, flange weld receptacles, end flange bolted receptacles, mid flange bolted receptacles, locknut flange bolted receptacles, bulkhead receptacles, and in-line receptacles.

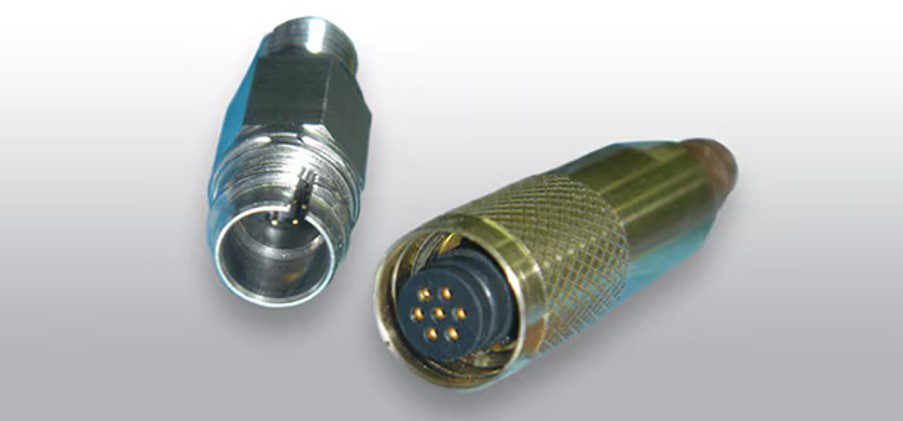

TE Connectivity’s M24217 series hermetic connectors (SEACON) are used in undersea and military applications are suitable for any operation where pressure, humidity, or temperature impact performance. A full range of receptacle mounting styles are available and contact configurations range from single coaxial to 48 size #16 conductors. All TE SEACON connectors, plugs can be supplied terminated and molded into waterproof cable assemblies or supplied in kit form.

Design Notes

Standards: MIL-C-24217

Materials: Typically made of 316/316L stainless steel, though other materials like Monel or titanium are used.

Mounting type or types: Bulkhead/flange-mounted options

Contacts: Available in various sizes (#16, #12, #8, #0) and pin counts, including coax configurations.

Environmental properties: Glass-to-metal sealed contacts in receptacles provide superior pressure barriers.

Pressure Rating: Capable of operating between 0 to 6,500 psig (450 bar), with testing capabilities up to 10,000 psi.

Markets and Applications

Military

Submarine systems, underwater sensors, and deep-sea equipment.

Suppliers

TE Connectivity, AMETEK, Teledyne DGO (Teledyne Marine), Birns
