Trends in Harsh-Environment Connectors for Automotive, Truck, and Off-Road Applications

By Rob Iversrud | February 17, 2026

By: Rob Iversrud, Senior Product and Category Manager, Waytek

As vehicle electrification, automation, and connectivity advance, the demand for more rugged, high-performance connectors in harsh vehicle environments grows. Today’s connectors must handle higher power loads, extreme environmental conditions, and increased data transmission requirements while remaining cost-effective and easy to install.

Key emerging trends are shaping the future of connectors in heavy-duty trucks, off-road machinery, and specialized automotive applications to meet these changing market demands.

Trend #1: High-voltage and high-current connectors for electrification

With the shift toward electric and hybrid trucks, construction equipment, and off-road vehicles, traditional low-voltage connectors are being replaced or supplemented with high-voltage (HV) and high-current solutions. Secondary electrical systems that power everything from air conditioners, seat heaters, and infotainment systems to sirens, ladders, other critical auxiliary systems are also contributing to higher current draws, requiring connectors with higher ratings.

The industry has seen an expansion of 100V–1000V+ connectors to support electric drivetrains, battery management systems, and power distribution.

Amphenol MagnaMate ATHP Connectors, rated at 1000 VDC, are a thermoplastic power connector series designed for EV applications. They have a high ingress protection rating (IP67) and are available in single or two-pole housings with rated currents from 20 to 180A. They include an optional integrated High Voltage Interlock System (HVIL) safety features and EMI shielding protection. These connectors can withstand temperatures ranging from -40° to 266° F (-40 °C to 130 °C).

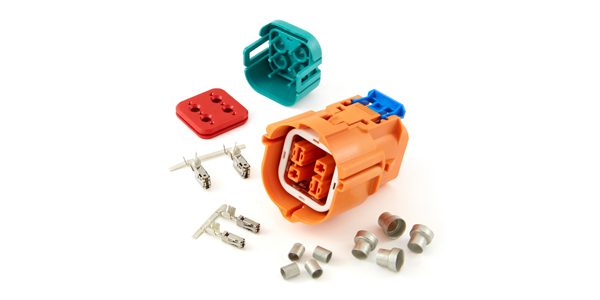

Aptiv’s ShieldPack Connector Kits, rated at 1000 VDC/40A, are also designed to ensure secure and reliable electrical connections in high-voltage EV systems. They are IP67-rated and have an operating temperature range of -40° to 257° F (-40° to 125° C). These connectors are ISO-cable compatible and feature a tool-less unmating system.

Trend #2: Increased demand for IP69K and extreme-sealing connectors

Traditional IP67-rated connectors have been the standard for off-road and heavy-duty vehicles, but with increased exposure to pressure washing, deep water crossings, and extreme weather conditions, IP69K-rated connectors are becoming the new benchmark. Connectors with IP69K ratings provide total dust and water protection, even against high-pressure, high-temperature water jets.

Industries such as agriculture, mining, and military require fully submersible connectors, increasing the demand for IP69K-rated solutions in procurement.

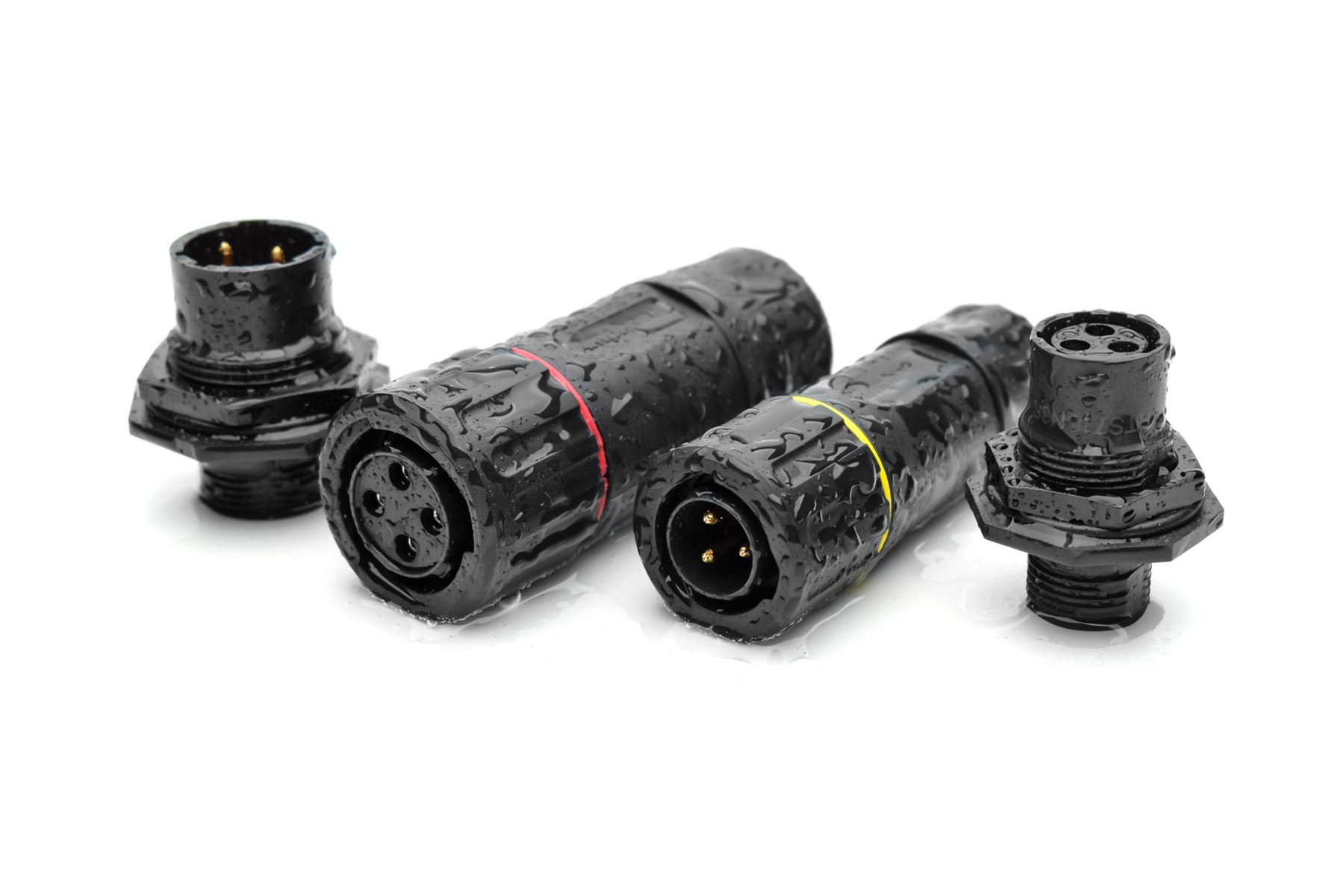

The ecomate Aquarius Series of waterproof connectors from Amphenol Sine Systems provides an IP67/69K waterproof rating along with multiple coupling options and pin counts ranging from 3 to 32 positions.

Learn more about IP ratings at the IEC website. Other standards addressing connector performance in harsh environments continue to evolve, including:

ISO 16750 (road vehicles – environmental conditions and testing)
SAE J2030 (heavy-duty electrical connector performance requirements)
UL and RoHS compliance for material safety and environmental impact

Trend #3: Miniaturization and high-density connectors

With vehicles becoming more electronically complex, space is at a premium. This has led to the rise of compact, high-density connectors that support more circuits in smaller footprints. Heavy-duty OEMs are seeking lighter, space-saving connectors without compromising on durability, making high-density solutions a growing area of interest.

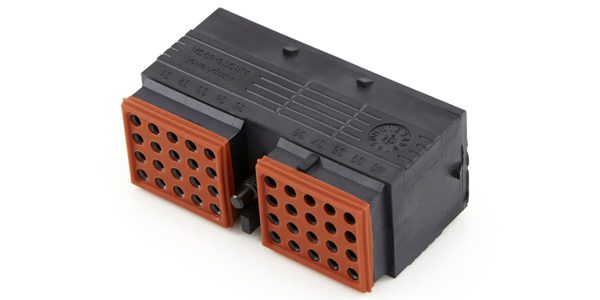

A high-density 40-position ARC Series connector plug from Amphenol Sine Systems. These rugged, environmentally sealed thermoplastic connectors are ideal for situations requiring high pin counts for use in controlled or uncontrolled environmental conditions. All plugs and receptacles are IP68/69K rated (in mated condition).

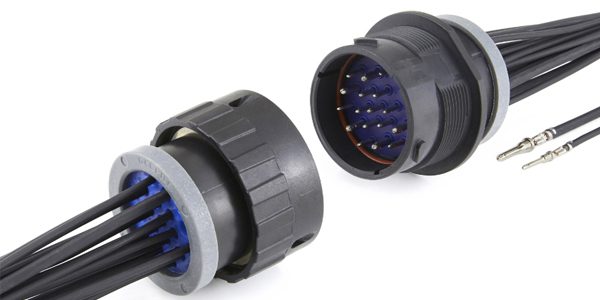

Aptiv HES (Harsh Environment Series) connectors offer high current capacity and high circuit density. These compact connectors are often used in agricultural machinery.

Trend #4: Increased use of composite and corrosion-resistant materials

Metal connectors are durable but can corrode over time, especially in applications with salt spray, chemicals, and extreme weather exposure. New thermoplastic and composite materials are being used to replace traditional metal housings, providing lightweight, corrosion-resistant alternatives. These high-strength connectors are lighter, more chemical-resistant, and just as durable as metal counterparts. Off-road and commercial truck manufacturers can reduce both weight and long-term maintenance costs by shifting toward composite connectors.

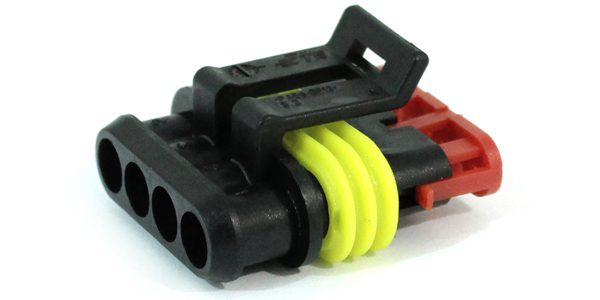

TE Connectivity’s AMP Superseal connectors utilize a glass-filled polyamide material to meet the rigorous demands of automotive, agricultural, and industrial machinery applications. These connectors excel in environments requiring reliable sealing, such as under-hood installations or locations exposed to harsh conditions in vehicles, trucks, buses, and off-road equipment.

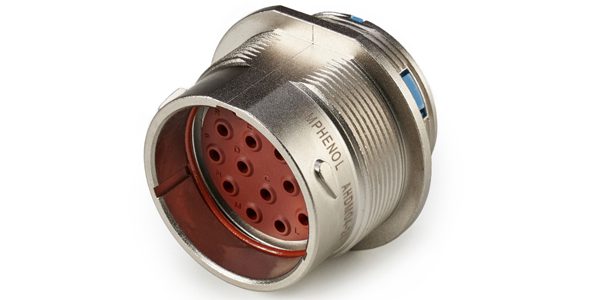

DuraMate™ AHDM connectors from Amphenol Sine Systems feature a corrosion-resistant metal housing designed with a bayonet locking system to ensure proper mating. Their rugged design withstands the challenges of harsh environment off-road applications.

Trend #5: Push toward tool-free and quick-connect solutions

Technicians and fleet operators are demanding faster, easier installation and servicing of electrical connections. This has led to the rise of tool-free, snap-fit, and modular connector solutions that reduce labor costs and minimize downtime. Push-to-connect, twist-lock, and lever-actuated connectors that require no special tools are growing in popularity, reducing labor costs, and improving uptime for vehicle fleets.

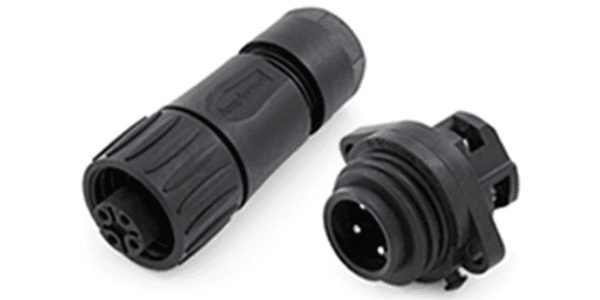

The ecomate C16 Series of connectors from Amphenol Sine Systems are field-installable, meaning they can be screwed together without any crimping tools required. They’re built to withstand extreme conditions including high vibration, temperature fluctuations, and exposure to moisture and dust.

Molex MX150 connectors feature terminal position assurance components and a simple crimp, poke, and plug application that eliminates time-consuming assembly. Their secure locking mechanisms withstand vibration and shocks.s.

Trend #6: Integration of data & power in a single connector

The rise of telematics, GPS tracking, and autonomous systems has generated demand for connectors that carry both data and power in rugged conditions. This is leading to hybrid connectors that integrate Ethernet, CAN bus, and power circuits into a single, sealed housing. Procurement teams should keep hybrid data/power connectors in mind as connected and autonomous vehicle technology coninues to expand.

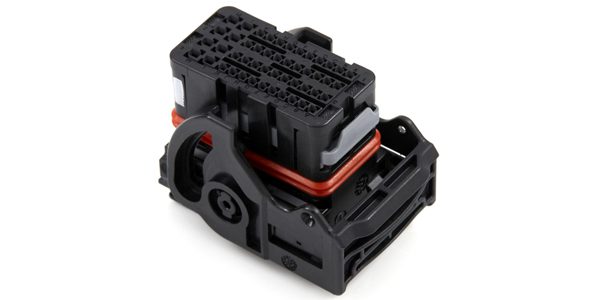

The CMC connector family from Molex. This modular, high-density hybrid connection system was developed for the transportation industry and supports power and signal lines in one connector. The hybrid design of a 48-pin connector is clearly visible. The eight larger cavities on the left are for current wires and the 40 smaller ones are for data or signal wires.

Hyperbuss AT connectors from Amphenol Sine Systems are a cost-effective solution for interconnect applications where a common “bussed” electrical pathway is required, such as connecting multiple circuit breakers, isolators, or switches. This type of connector can be used as a bus coupler to connect multiple circuits that would otherwise require exposed busbars. The internal bus bar & terminal assembly of an Amphenol Hyperbuss connector shows a fully contained connector with a 12-pin layout to control up to 4 circuits.

Other considerations when choosing connectors for use in harsh conditions

Electrical connectors serve as the backbone of reliable power and signal transmission for commercial vehicles, off-road equipment, and trucking. Connectors in these applications face tough environmental challenges including moisture, extreme temperatures, vibration, and chemical exposure. A failure in one connector could mean downtime, costly repairs, or even safety hazards for these vehicles.

Selecting and implementing the right connector for these applications requires balancing cost, durability, performance, and long-term reliability based on the combination of factors that will impact the connector.

Moisture & water ingress. Heavy rain, mud, power washing, and even submersion in water demand connectors with IP67 or higher ratings to prevent short circuits and corrosion.
Extreme temperatures. From freezing -40 °F (-40° C) winters to engine-compartment heat exceeding 250°F (121°C), thermal expansion and contraction can compromise poor-quality connectors.
Vibration & mechanical shock. Rough terrain, potholes, and high-impact forces can loosen weak electrical connections. Vibration-resistant locking mechanisms are a must.
Corrosion & chemical exposure. Salt spray from winter road conditions, fuel spills, hydraulic fluids, and cleaning solvents can eat away at unprotected materials. Corrosion-resistant plating and sealed housings extend lifespan.
Dust & debris intrusion. Fine dust particles and mud can infiltrate open connectors, causing electrical failures. Sealed connectors with gaskets ensure protection.

Several manufacturers offer connector models that perform well under these conditions. Leading solutions include:

CMC Series and MX 150 Series connectors by Molex. Both are environmentally sealed and designed for exceptional performance in harsh environments.
AT Series by Amphenol Sine Systems. These high-performance, IP68/69K rated connectors have superior environmental seals and incorporate an integral latching system to ensure a definitive connection in harsh environments.
TE Connectivity’s AMP Superseal 1.5 Series: Often used for automotive and marine applications, this connector series is designed for tight spaces while maintaining excellent environmental protection.
Metri-Pack 280 and 150 Series by Aptiv: Developed for automotive and heavy-truck applications, Metri-Pack connectors come in IP67-rated sealed versions, offering compact yet high-current capacity (up to 30 amps) and excellent vibration resistance.

Whether sourcing connectors for a fleet of trucks, heavy machinery, or specialized off-road vehicles, look for IP67+ ratings to ensure protection against water and dust and choose durable models that offer superior corrosion resistance. Check for secondary locks and wedge locks to prevent loosening under rough conditions. The ideal connector size will be one that fits the space requirements but also provides ample pins to serve the system’s circuits. Finally, make sure the amperage and voltage ratings match the electrical system’s requirements.
