M-Type Connectors Product Roundup 2026

This week’s Product Roundup highlights M-type connectors from leading connector manufacturers and suppliers.

M-Type Connectors

The binder M12 connector series from CDM Inc. are key components for harsh industrial environment robotics and automation applications. binder M12 connectors are available from CDM in all standard formats for signal and automation (most popular A, B coded), data and Ethernet (D, X coded) and power supply (S, K, T coded) along with specialty combination interfaces. Standard connectors are available in 3-12 contact configurations rated up to 4A at 250V. binder M12-series connectors have rugged stainless-steel or zinc diecast, nickel plated shells, and up to IP69K ingress performance ratings for optimum durability.

HARTING’s M12 Hybrid Y-coded product family from Heilind Electronics is based on implementation of new Y-coded inserts designed according to IEC 61076-2-113. HARTING’s connectors are shock- and vibration-proof with a temperature range from -40 °C to +85 °C. Y-coding is a hybrid mating face for M12 connectors including four contacts for data transmissions and four contacts for power supply. The push/pull housing allows for quick disconnect and time savings. The hybrid interface frees up space required for signal and communication interface. This series has increased design simplicity and density, current carrying capacity of 4 x 6A, 4 x 0.5A, Cat5 performance up to 100Mb/s, and IP65/67.

Phoenix Contact’s M17 PRO Hybrid Connector transmits power, signal, and data through a single interface, reducing cabling complexity. As the first M17 hybrid connector in accordance with the IEC 61076-2-117 standard, it delivers global compatibility and trusted reliability. The robust construction and flexible configuration options ensure reliable performance in demanding environments. Simplify installation, save space, and future-proof systems with hybrid technology that keeps your automation running seamlessly.

binder’s M12 L-Code Series 823 is used in power applications for industrial automation. The M12 L-code offers a miniaturized solution for IEC standards using 24V power supply systems for Profinet-devices. The IP67 rating makes it an ideal fit for harsh environments.

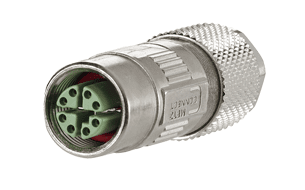

METZ CONNECT’s M12 X-code field installable jack delivers reliable 10 Gb/s Ethernet performance with exceptional mechanical and electrical stability, making it an ideal solution for demanding industrial environments. Compatible with 4-pair, 22–26 AWG cabling, it requires no special tools for assembly and is both vibration-proof and shock-proof in accordance with IEC 61076-2-109. Once connected, its robust housing and 360° shielding concept provide IP67+ protection against dirt and humidity. Its reusable design offers long-term value on the factory floor.

The JB12 Series from JAE is a family of compact cable‑to‑cable waterproof Ethernet connectors designed for reliable signal transmission in space‑constrained applications. It features a durable locking mechanism, stable electrical performance, in a lightweight and easy‑to‑assemble design.

Weidmuller offers M-type connectors, including M12 standard (IEC 61076-2-101) and the M8 standard (IEC 61076-2-104). These industry-standard circular connectors are widely available for new projects and replacements are easily accessible. The M12 and M8 ensure that a proper connection is maintained between components and offer up to IP69 protection against the maximum amount of water and debris, preserving the integrity of data, signal, and power transmission.
