Connectors for Security Applications Product Roundup

This week’s Product Roundup highlights connectors for security applications from leading connector manufacturers and suppliers.

Connectors for security applications

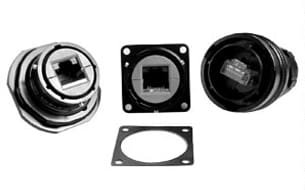

PEI-Genesis supplies Amphenol RJ Field series connectors that allow for the use of an Ethernet Class D/CAT5e connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJ Field series are circular metal connectors with tri-start threading coupling systems. They support 10 Base-T, 100 Base-TX, and 1000 Base-T networks; CAT5e per TIA/EIA 568B and Class D per ISO/IEC 11801; and CAT6 per TIA/EIA 568 and Class E per ISO 11801 protocols.

The CABLINE-CA series connector from I-PEX has a maximum height of 1.1 mm, contact pitch of 0.4 mm, and a mechanical locking bar on the plug. With tight bending and high flexibility of micro-coaxial cables, this series of products can be placed through hinge in reliable compact camera systems like Dome, Panoramic, and Specialty cameras. These products can support data rates up to 20 Gb/s per lane by using AWG 38, 40 fully shielded micro-coaxial and AWG 40 twinax cables. The mechanical lock bar ensures complete and reliable signal contact. Multipoint ground contact points in the horizontal mating plug and receptacle assembly with shielded micro-coaxial cables offer high-speed signal integrity for superior image quality.

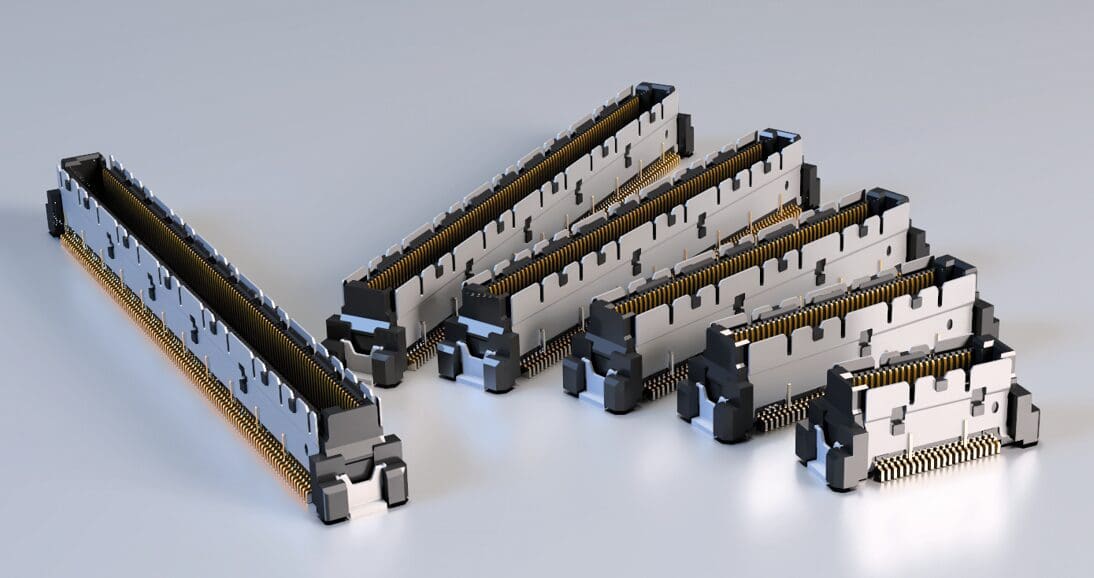

ept’s Colibri, now offered in versions ranging from 10 to over 25 Gb/s, is tailored to address the demands of high-speed data and imaging applications. This shielded dual-row SMT connector features a 0.5 mm pitch, making it ideal for the rapid data transmission rates required in fast and secure security-related uses, including cameras. Colibri connectors empower camera systems to detect and respond to incoming threats or environmental changes at astonishing speeds. They adhere to the standards set by PICMG COM Express, SFF-SIG CoreExpress, and VITA59. The Colibri 16+ and 25+ Gb/s variants can facilitate interference-free data transfer for USB 3.1 Gen2 and PCI Express 4.0 signals. Colibri connectors are also available in a heavy gold variant, which are suitable for critical and high-demand security satellite, military, or aviation imaging applications.

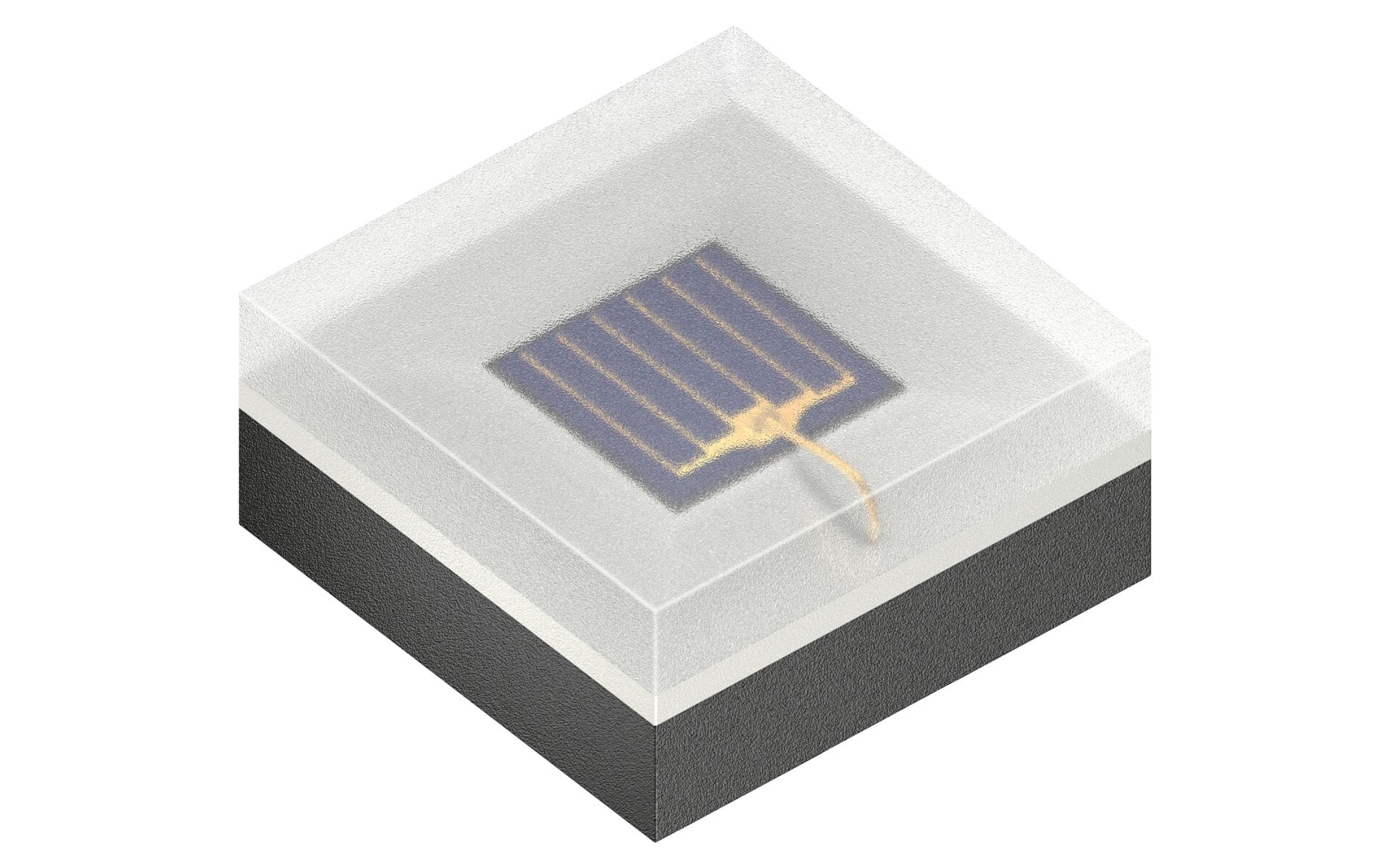

ams OSRAMs OSLON P1616, supplied by Avnet, offers an outstanding power-size ratio combined with different half angles which adapt to the needs of the application. With the development of the new Infrabright IR:6 Chip technology, ams OSRAM increases the value of IR-based applications such as biometric authentication and security cameras, producing brighter IR illumination and image quality while extending battery run-time.

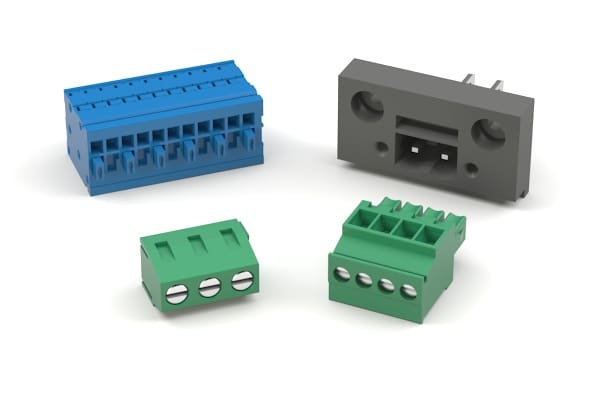

Adam Tech EB Series Euro Blocks are a broad range of PCB mounted blocks in various sizes and profiles with pitches ranging from 3.50 mm up to 15.00 mm. Included are types that have wire entry from top, side, or side angle. Two piece ‘pluggable’ versions and ‘lever-actuated’ styles are also available. Each contains a unique wire guard design and is precision manufactured for smooth operation and ease of use. In security applications, Euro block connectors (also known as Eurostyle terminal blocks) are commonly used to connect wires in control panels, sensors, and other security devices due to their quick, reliable, and easy-to-access connection method, particularly when dealing with multiple wires for various signal types
