ZIF & LIF connectors Product Roundup

This week’s Product Roundup highlights ZIF & LIF connectors from leading connector manufacturers and suppliers.

ZIF & LIF connectors

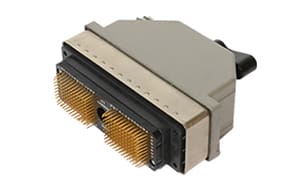

PEI-Genesis supplies ITT Cannon’s DL connector family, a versatile, high-density zero insertion force (ZIF) connector series with up to 260 contacts in plastic body connectors and up to 408 contacts in the EMI/RFI shielded metal body connectors.

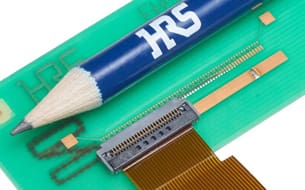

Avnet supplies Hirose’s FH52 series, a family of flat flexible cable/flat printed circuit (FFC/FPC) ZIF connectors which meet the requirements of automotive applications. The connector housing incorporates a robust locking structure which ensures that the actuator cannot be removed even under rough operating conditions. The rotating actuator is supported by the tips of the contacts to form a strong hinge point rather than relying on the walls of the housing. In addition, the metal fittings provide additional support to the actuator from underneath. As a result of these features, the connector can withstand a high pull force of 30N in the horizontal direction when using a 10-position tabbed FPC with a thickness of 0.3 mm.

Powell Electronics supplies TE Connectivity’s (TE) new low insertion force (LIF) 250 FASTON receptacle terminal with 2D crimp. LIF 250 FASTON is designed for a broad range of quick-disconnect applications. This new receptacle requires less than six pounds of insertion force while still providing excellent retention force when used with a 0.250” x 0.032” FASTON tab. The 2D crimp accommodates wire sizes from 22 to 12 AWG using the same applicator while providing electrical and mechanical properties comparable to those of the traditional F crimp. This can reduce the number of part numbers to spec in, buy, and inventory; reduce applicator cost and set-up; and improve applicator efficiency. This LIF 250 FASTON receptacle with 2D crimp technology can be used across all industries where a standard F crimp 250 FASTON receptacle has always been used.

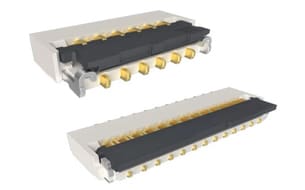

F14D/F13S series from Amphenol Communications Solutions is a right-angle ZIF flex connector with a front flip lock, surface mount termination, and bottom side contact. It features a small profile with 0.3 mm pitch and 1.0 mm height and is easy to operate. This series features an FPC thickness of 0.20 mm and provides enhanced durability and contact stability. Strong FPC retention force makes it vibration-proof.

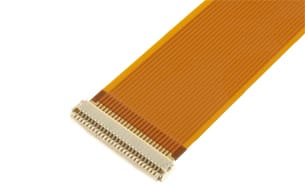

MINIFLEX is a family of low-profile FPC/FFC connectors from I-PEX designed to simplify assembly and ensure stable cable retention in compact, high-density applications. Available in a range of pitch from 0.175 to 0.5 mm and robust locking mechanisms as an option, these connectors maintain secure cable engagement and consistent contact performance. The molded housing design helps reduce the risk of connector warpage, supporting reliable solder joints even in challenging layouts. MINIFLEX connectors are designed to function normally even when empty closure occurs. They are available in various styles, including front-flip and back-flip actuators, to accommodate different design preferences while offering options in pin counts to meet diverse requirements. With a focus on compactness, ease of use, and dependable connectivity, the MINIFLEX series delivers practical solutions for space-constrained electronic devices.

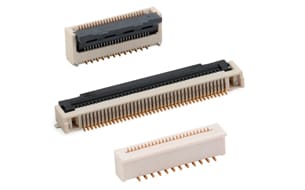

Greenconn’s FPC series zero insertion force (ZIF) connectors offer a wide range of actuators, pitch sizes, and circuit sizes to meet various application needs. These low-profile and lightweight connectors are designed for compact devices, providing reliable and easy-to-use solutions. ZIF connectors work seamlessly with flat flexible cables (FFC) to deliver robust performance and enhanced design flexibility, making them ideal for applications such as small displays, keyboards, and other space-constrained electronics.
