Waterproof & Hermetic Product Roundup

This week’s Product Roundup highlights waterproof & hermetic connectors from leading connector manufacturers and suppliers.

Waterproof & Hermetic Interconnects

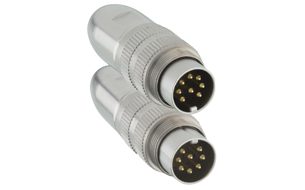

Lumberg’s 360° shielded screw-type circular connector features an innovative shielding mechanism on the inside of the casing that makes it possible to compose the entire connector from a much smaller number of individual parts. This facilitates a much faster assembly process when mounting the connector to the cable by soldering or crimping. The highly time-consuming and elaborate process of expanding, shortening, and applying a shielding braid required with comparable connectors is eliminated. The quality of the assembly is raised by eliminating typical assembly errors, which can immensely impact watertightness. Assembly can be completed in 50% of the time compared to conventional circular connectors. In addition to resistance to salt, dust, and UV rays, a special ratchet feature fitted into the metal casing offers tactile feedback to the installer and provides long-term vibration protection. Watch the fast and simple AISG circular connector assembly solution.

Cannon’s KPT Hermetic connectors are a fully gas-tight and waterproof series that are intermateable to VG95328/MIL-DTL-26482 standards. They are high-density miniature circular connectors with a glass-to-metal hermetic seal that can withstand up to 200 °C and 100 bar. KTP Hermetic connectors are available with straight, PCB, and solder pot contact options. Standard configurations include 4, 6, and 19-way layouts with multiple other layout options available on request.

Greenconn’s GT series wire-to-wire connectors offer robust waterproof and hermetic performance for demanding environments. With IP68-rated sealing, reinforced latch mechanisms, and optional dust covers, they ensure secure wire-to-wire connections even under moisture, dust, and vibration. Compact yet rugged, these connectors maintain reliable signal and power transmission for automotive, industrial automation, heavy machinery, and new energy applications, making them ideal for systems where environmental protection and long-term reliability are critical.

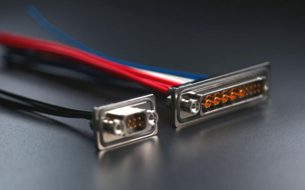

Nicomatic’s DMM IP67 series is engineered for mission-critical defense and industrial systems where interconnect reliability is non-negotiable. Fully compliant with IEC 60529, this rugged 2 mm pitch connector features a high-performance silicone gasket and a nickel-plated aluminum shell, ensuring complete sealing against dust and water immersion (tested at 1 meter for 30 minutes). Beyond waterproofing, the DMM IP67 is built for extreme mechanical stress, withstanding 50g shocks and 20g vibrations (10-2000 Hz). Its modular architecture allows engineers to combine signal (3A), power (up to 20A), and high-speed data (10Gb/s) in a single housing. Optimized for use with shielded round cables, it ensures excellent EMI/EMC protection and signal integrity, offering a compact, lightweight, and robust alternative to standard Micro-D solutions. Key specs: IP67 rated (1m/30min), MIL-DTL-83513 compliant performance, hybrid layouts (signal/power/data), 360° EMI shielding with round cables.

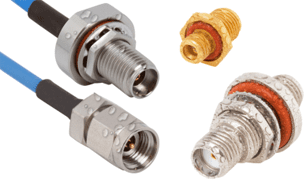

SV Microwave offers IP67 and IP68 interconnects designed to withstand rigorous environments and harsh elements. SV’s cable assemblies include O-ring sealed connectors to 1 x 10-8 cc/sec, ideal for high-pressure, harsh environments, and preventing dust, liquid, or gas leakage. The adapters in this line include hermetically sealed connectors to 1 x 10-8 cc/sec, ideal for high-pressure vacuum applications and the prevention of liquid or gas leakage.

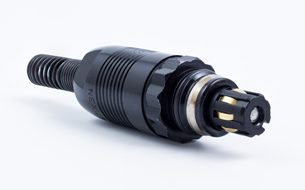

CDM now provides the AP- and AJ- Series of connectors from Amphenol NEXUS Technologies, which are watertight in up to six feet of water and breakaway with an axial push-pull motion. This series of circular connectors features exclusive molded-on wiping-action contacts that provide a self-cleaning feature and eliminate issues with pin/socket open contacts. These 7-pin and 10-pin connectors are designed for multiple cable diameters, are available in shielded versions, and can include either solder-type contacts or insulation-piercing contacts, which are field replaceable. All connectors are rated at up to 5,000 mating cycles. This series is especially well suited for rail and transit signals, telecommunications equipment, industrial equipment, or any other application where a ruggedized breakaway connector is required.

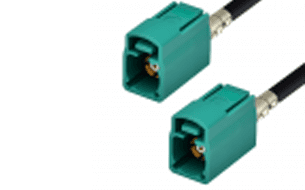

Adam Tech’s Waterproof FAKRA cable assemblies are available in ratings of IP69K, IP67, and IPX7. The double-ended FAKRA cables are offered as jack to jack, plug to plug, and jack to plug configurations. FAKRA plug to IPEX cable assemblies are also available. These assemblies are offered in a variety of cable types, and lengths ranging from 0.1 m to 5 m.
