What are CopprLink Cables

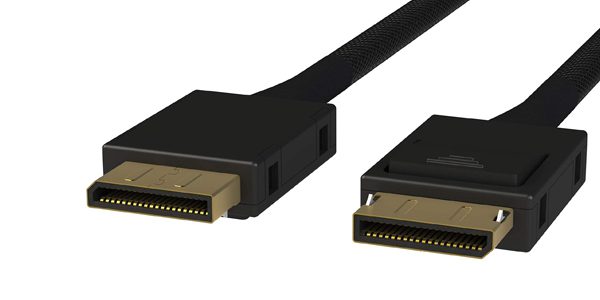

Meet the Connector: CopprLink Cables

CopprLink is a PCIe cable specification introduced in 2024 by PCI-SIG to standardize high-speed cabled interconnects for modern computing architectures. It defines both internal and external copper cable assemblies for PCIe systems, covering signaling rates from 2.5 GT/s through 64.0 GT/s (PCIe 5.0 and 6.0), with development underway for PCIe 7.0 at 128.0 GT/s. Engineers designing new platforms with a >3-year lifecycle should validate that their cable routing, connector placement, and signal integrity budget can accommodate this next generation.

As rack-scale and disaggregated architectures become standard in data centers, there is growing demand for a vendor-neutral, standards-based cable solution that bridges the speed and reach requirements between nodes. CopprLink fills this role by pairing established SNIA SFF connector form factors with PCIe electrical specifications.

Connector Considerations

Internal Cables — SNIA SFF-TA-1016

The internal CopprLink specification uses the SNIA SFF-TA-1016 connector, which is available from Molex MCIO (Mini Cool Edge IO) and Amphenol (Mini Cool Edge IO).

This is an unshielded, high-density connector optimized for short-reach signal integrity within an enclosed chassis. Its unshielded design reduces cost and complexity inside EMI-controlled enclosures.

Typical use cases within a server node:

• Motherboard to add-in card
• Motherboard to storage backplane
• Chip-to-chip interconnect on a common board or carrier
• Add-in card to backplane

Key design constraint: Maximum reach of 1 meter, making it unsuitable for any connection leaving the system boundary. Engineers should also account for cable routing overhead — usable lengths are often 0.5–0.8 m after bend radius and strain relief allowances.

External Cables — SNIA SFF-TA-1032

The external CopprLink specification uses the SNIA SFF-TA-1032 connector, designed for multi-lane, high-speed interconnects between separate chassis or rack units. Unlike the internal variant, this connector is built for environments where cables are exposed to handling, EMI, and mechanical stress.

Typical use cases in disaggregated platform nodes:

• CPU to external storage shelf
• CPU to memory expansion module (CXL)
• CPU to accelerator (GPU, FPGA, DPU)
• Accelerator-to-accelerator fabric interconnect (e.g., in AI training clusters)

Key design constraint: Maximum reach of 2 meters for passive copper. For distances beyond 2 m, engineers should evaluate active copper cables (ACC) or optical alternatives.

PCI-SIG issued the SFF-TA-1032 Specification in 2024 to keep up with demand for high-speed cabling. The CopprLink External cables utilize the SNIA SFF-TA-1032 connector, which is a Multi-lane External High Speed Cable System. The External cable example implementations include CPU-to-storage, CPU-to-memory, CPU-to-accelerator, and accelerator fabrics in devices disaggregated server platform nodes.

Design Notes

Standards:

PCI-SIG’s External Cable Specification

PCI-SIG’s Internal Cable Specification

CopprLink internal cable specification

• Supports PCIe 5.0 and 6.0 technology signaling at 32.0 and 64.0GT/s
• Includes the SNIA SFF-TA-1016 connector form factor
• Maximum of 1m reach within a single system
• Example implementations include motherboard-to-add-in-card, motherboard-to-backplane, chip-to-chip and add-in-card-to-backplane in a self-contained server platform node
• Target applications include storage and data center compute nodes

CopprLink external cable specification

• Supports PCIe 5.0 and 6.0 technology signaling at 32.0 and 64.0GT/s
• Includes the SNIA SFF-TA-1032 connector form factor
• Maximum of up to 2m reach in rack-to-rack connections
• Example implementations include CPU-to-storage, CPU-to-memory, CPU-to-accelerator, and accelerator fabrics in disaggregated server platform nodes
• Target applications include storage and data center AI/ML use cases

Markets and Applications

Data centers

AI/ML training and inference infrastructure, storage expansion and disaggregated storage shelves, CXL memory expansion, composable and disaggregated server architectures

Suppliers

Suppliers include Amphenol Communications Solutions, BizLink, Molex, and TE Connectivity

Related products

SNIA SFF-TA-1016
SNIA SFF-TA-1032
CDFP connectors
CXL 3.x
PCIe 5.0/6.0
