High Power Connectors Product Roundup

This week’s Product Roundup highlights high power connectors from leading connector manufacturers and suppliers.

High power connectors

SV Microwave’s BMB interface is where large form factor and high power meet. It provides a push-on, more robust, and higher-power-handling option than other SMPx interfaces. Due to its larger form factor, this rugged interface can handle more power than SMP and SMPM interfaces without sacrificing reliability or performance. This MIL-STD-348 and SOSA-aligned interface is D38999 compatible and gang mateable for versatility.

Adam Tech’s ESMC Power Series delivers dependable, high-power board-to-board connectivity in a compact 2.54 mm pitch design, engineered for demanding power applications. This stacking and coplanar connector family is available in 2 to 12 positions, with each precision-formed contact supporting up to 24A for stable, high-current transmission. Featuring selective gold plating and a robust terminal structure, the ESMC series ensures excellent conductivity, mechanical strength, and long-term reliability. Flexible parallel, perpendicular, and side-by-side PCB configurations, along with vertical or right-angle orientations and SMT or DIP mounting options, simplify layout and integration while supporting efficient automated assembly through plug and socket options, pick-and-place caps, and tape-and-reel packaging.

Amphenol’s BarKlip BK1200 HD I/O power cable assemblies feature an OCP-compatible design, compliant with ORv3 power distribution architecture standards. Barklip BK1200 HD I/O can distribute up to 1250A per contact, load and return, and up to 2500A total. Designed similarly to other ORv3 busbar connectors, BK1200 HD I/O provides best-in-class current carrying capability. It features silver-plated contacts to ensure low contact resistance, a braided flex cable for space conservation, and secondary chassis grounding contacts to provide grounding functionality for improved safety. BarKlip BK1200 HD I/O’s high current carrying capabilities and customizable design are ideal for data center applications such as power shelves (PSUs), battery backup units (BBUs), server/ storage sleds, and high-density system architecture powering AI.

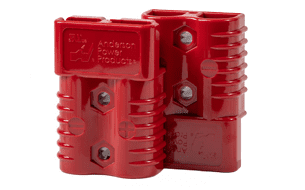

Anderson Power’s SB Connector Series helped set the standard for DC power distribution and battery connections when it was created by Anderson in 1953. Today, the line remains a strong fit for high-current applications, with four sizes supporting 50A to 500A, a UL rating up to 600V, and a one-piece housing designed for durability in demanding environments. The SB Series offers high power performance in sizes available up to 500A. Stainless-steel springs retain the contacts and help maintain contact force for greater electrical efficiency. Genderless connector design enables the same connector to mate with itself when rotated 180°, helping simplify inventory and assembly. Color-coded, mechanically keyed housings help prevent mismating across voltages, increasing safety. The SB Series is a proven fit for industrial use, including material handling, motive power, AGVs, UPS, EVs, commercial trucking chargers, and electrical testing equipment.

The LSH rack and panel high power connector series from Smiths Interconnect is utilized across many different market segments including aerospace, automotive, industrial, Test & Measurement, and mass transit. The foundation upon which the LSH is built is the leading-edge Hypertac hyperboloid contact technology. This world class interconnect technology ensures LSH connectors are immune to shock, vibration, and fretting. In addition, they feature low insertion and extraction forces that are a catalyst for easy mating relative to their contact size. The LSH Series delivers customers a contact life that can be maintained for up to 100,000 mating cycles and at an extremely low cost of ownership.

Weidmuller’s Omnimate 4.0 line of SNAP IN connectors include the MPS/MHS 6 PCB connector family that features a 6.35 pitch—the most compact solution to achieve an IEC 1000V, UL 600V rating, allowing space savings of up to 15% on the printed circuit board. The MPS 6 plugs are UL rated for 20 to 10 AWG and 30A. The MPS/MHS 6 joins Weidmuller’s existing Omnimate 4.0 line to bring the largest and broadest portfolio of products with a SNAP IN connection to market. With its unique spring-clamp design, SNAP IN connection technology simplifies system installation and boosts speed, reliability, and safety.

Versatys miniature power connectors from Axon Cable achieve the same performance as power D-Sub connectors while saving space and weight. At 40% smaller than D-Sub connectors, Versatys compact power connectors give greater flexibility to customers in terms of design. For easier and faster integration, Axon’ has developed a removable contacts version and a fast-locking one. These miniature connectors can be mated and locked in place without any tooling and all in a single click. Versatys is the ideal solution to supply electrical and electronic devices for satellites, aircraft, or armored vehicles. Components of the Versatys power connector including the shell, contacts, and wires can be ordered in kit form.

Panel feed-through terminal blocks from Phoenix Contact feed high currents and voltages through thicknesses from 1 mm to 6 mm. With different connection methods, they offer supreme flexibility for conductor connection. For any mounting position, the panel feed-through terminal blocks provide the right solution for reliable connection technology and simple installation.

ACDRA Corporation’s V-Loc Pro Max Series is a compact, high-density aluminum alloy connector engineered for the extreme demands of next-generation EV and hybrid platforms. Rated for up to 2000 VDC/600 A, it features 360° shielding, 720-hour salt spray resistance, IP68 sealing (2 m, 48 hours) including an unmated receptacle seal, and compliance with USCAR2 V3 vibration standards. An integrated NTC thermistor enables temperature monitoring. Designed for flexibility, the connector is field‑assembled and accommodates shielded cables from 50 mm² to 185 mm², slashing installation time and complexity. From commercial trucks and buses to heavy‑duty agricultural, construction, and off‑road vehicles, V‑Loc Pro Max provides a robust, reliable power‑distribution backbone.

Heilind Electronics supplies Amphenol Tuchel Industrial Plugs and Sockets—pin and sleeve connectors ideal for applications where it is necessary to connect and disconnect industrial equipment in a safe, durable, and reliable manner.  Offered in amperages/voltages up to 125A/690V (available in both Easy & Safe, Tough & Safe Series, International/CE compliant) and up to 100A/600V (Tough & Safe, UL/CSA compliant), all while meeting IEC 60309-1, 60309-2, 60309-4, and UL standards. These pin and sleeve devices use high quality contacts that prevent stops and power breaks, offering a high degree of reliability.  Safety is always important. Choosing our plug and socket connectors minimizes the risk of short circuits, ensuring maximum personal safety for anyone using your equipment. Available in plugs, receptacles, inlets, and connectors and engineered for reliability, these products provide robust protection against water, dust, and environmental challenges, ensuring consistent performance even in harsh conditions. The innovative self-cleaning calibrated contacts minimize arcing, extend the lifespan of the connectors, and reduce maintenance and downtime, making them ideal for critical applications across industrial, commercial, and outdoor settings.

Engineered to comply with the latest military and industrial standards, the Amphenol PCD Rhino 38999 available from CDM Inc. is the premier choice for essential high-power applications. It offers distinctive features such as six keyways, an anti-decoupling mechanism, exceptional EMI performance, and high vibration resilience. Enhanced safety features include touch-protected contacts and a unique safe-mating design for confident handling. Available in a variety of shell materials, plating finishes, and custom configurations, the Rhino 38999 guarantees unparalleled reliability and performance in military, aerospace, and industrial sectors.

ITT Veam PowerLock connectors are plastic-bodied single-pole connectors for use in high power, low voltage applications. With current ratings of either 800 Amps or 450 Amps, PowerLock connectors are keyed to prevent connections with the wrong line, and color coded to meet various international 3 phase electrical standards. Available in PowerLock source and drain versions, the connectors are rated IP2X for protection against finger touching of live electrical parts when unmated, and when mated are sealed to IP67. PowerLock connector body styles include those for panel mounting or for fitting to a wide range of copper power cables up to 300 mm². A selection of PowerLock accessories and network connection devices, including the PoweLock Distribution Box are available to enhance the range.
