Connectors for Construction/AG Vehicles Product Roundup

This week’s Product Roundup highlights connectors for construction/AG vehicles from leading connector manufacturers and suppliers.

Connectors for Construction/AG Vehicles

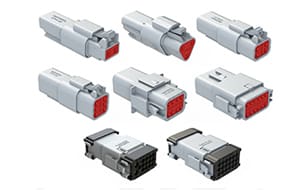

PEI-Genesis supplies Amphenol Sine Systems AT Series connectors, an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals and seal retention capabilities. These connectors are designed for use with 14-22AWG with size 16 contacts handling up to 13A and can be used in the cabin and chassis interface of harvesting vehicles.

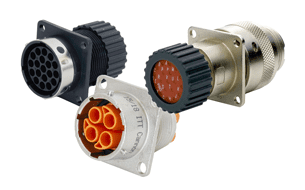

The Cannon Trident Series is an extremely versatile range of connectors for multiple harsh environment transportation applications. From shielded metal circular connectors to plastic circular and snap-together rectangular solutions, all connectors in this series utilize the leading Trident contact system. Features include mixed power and signal variants, sealing up to IP67, high voltage capability, UL 94 V-0 flammability performance, and durability up to 500 mating cycles.

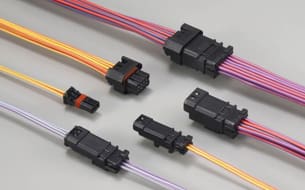

The MX80 Series from JAE is a family of compact waterproof automotive in-line connectors. They are miniaturized and ideal for use in areas where vehicle mounting space is limited. MX80 Series connectors support a range of wire sizes for exceptional power and control. Variations such as alternate key codes, IPX9K type, and more will be added in the future.

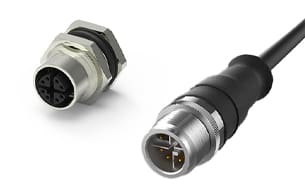

ATTEND’s M12 X-code connectors and cables deliver high-performance data transmission in demanding environments. Designed to conform to IEC 61076-2-109 for M12 X-code connectors and suitable for Ethernet applications that align with ISO/IEC 11801 structured cabling standards, these solutions support data speeds from 1 Gb/s to 10 Gb/s with integrated PoE functionality for simultaneous power and data transmission. Supporting applications like precision agriculture and construction telematics, the M12s deliver real-time data. Built with an IP67-rated design, the rugged construction ensures reliable operation in outdoor and high-moisture environments. Customizable in length and specifications, the design provides precise adaptability for industrial automation, transportation, and networking infrastructure needs.

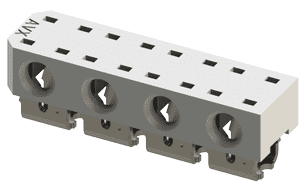

Kyocera AVX’s 9176-800 series of insulation displacement connectors (IDC) are a low profile, reliable, and cost-effective wire to board solution commonly used in many construction or agricultural vehicle applications.  Designed for 22 to 30 AWG solid or stranded wires, these connectors can be potted or overmolded and allow for daisy chaining PCBs together.

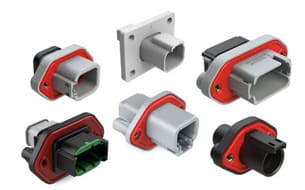

Avnet supplies Amphenol’s PanelMate Family of PCB board receptacles, engineered with a one-piece, sealed, flanged design for rapid and secure mounting. Their durable, high-temperature, silicone facial seal provides a barrier of protection from lubricating oils, hydraulic fluids, and fossil fuels to withstand the challenges and complexities of harsh environment applications.

Amphenol Communications Systems’ NETBridge+ Automotive Ethernet connector system has had recent success in smart agriculture vehicles. It can transmit up to 100 Mb/s and 1 Gb/s according to IEEE 100BASE-T1 and 1000BASE-T1 and will be upgraded to 10 Gb/s. This automotive-grade Ethernet connector system uses single pair cables to transmit data. NETBridge+ is developed according to USCAR-2 and Ethernet specifications and is offered in miniaturized and sealed configurations.

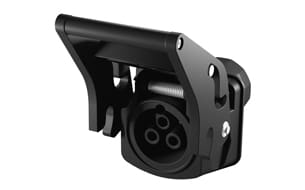

Schaltbau’s HV series connectors feature solid power and signal contacts and are suitable for a wide range of high-current applications. The robust connectors have a modular design and protection against accidental contact. They are IP69K certified and designed for a high number of mating cycles. Rated voltages are up to 1,000 volts and rated currents are up to 470 amps. Main contacts in the plug and socket housing are safely protected against accidental contact. A sliding mechanism on the handle of the socket housing allows for one-handed operation. An optional switching element in the socket housing signals a correctly plugged-in connector. Solid power contacts for different connection cross-sections up to 95 mm² and 4 universally applicable signal contacts are available. HV series connectors meet the requirements of UL94-V0 and EN 45545 fire protection standards.

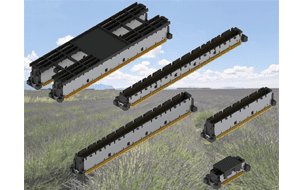

Rugged terrain is no match for a drone equipped with flight and video enabled by ept’s high-speed Colibri connector series. Colibris are a 0.5 mm pitch, shielded, two-row SMT connector series that offer up to 25+ Gb/s data transfer speeds. Colibris meet the requirements of PICMG COM Express as well as SFF-SIG CoreExpress, and reach the speeds critical for enabling fast decision-making in autonomous technology and AI-enabled equipment. Crop rows can be inspected with the push of a button, field notes can be geo-tagged, vegetation and equipment assets managed remotely, and 360° imaging can remotely report weather or equipment anomalies in high-definition quality. The Colibri series is available in versions up to 400 pins, and in rugged heavy-gold versions for the most challenging environment conditions. Colibri connectors are already currently in use in military, industrial automation, drone, aerospace applications, and beyond.
