ARINC 801, ARINC 810, & Galley Connectors Product Roundup

This week’s Product Roundup highlights ARINC 801, ARINC 810, & Galley connectors from leading connector manufacturers and suppliers.

ARINC 801, ARINC 810, & Galley Connectors

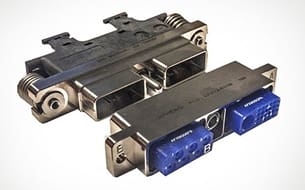

Amphenol Pcd’s APeX galley rectangular connector is reliable and robust. The APeX galley’s overmold technology sets it apart from the rest. It is intermateable and interchangeable with other ARINC 810 galley connectors.

Smiths Interconnect ARINC 801 fiber optic terminus is the next generation of high density, butt joint interconnect technology. With its standard 1.25 mm ferrule and sleeve, the ARINC 801 terminus is designed for both multimode and single-mode applications. For the pull-proof design, the cable jacket is crimped on an external body and a floating mechanism avoids any loss of performance when pulling on the cable. This feature allows for the use of the connector without a backshell. Standard connector formats include MIL-DTL-83527 type, ARINC 600, and ARINC 781.

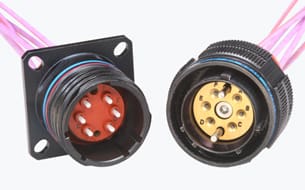

This multi-channel circular connector from Amphenol Aerospace uses the ARINC 801 ceramic termini. Available in straight plug and wall mount receptacle, it features a removable alignment sleeve insert for easy cleaning of fiber optic termini and three stages of alignment (shell-to-shell keys, guide pins, and ceramic alignment sleeves). All the features of standard D38999 straight plug and wall mount receptacle shells are included.

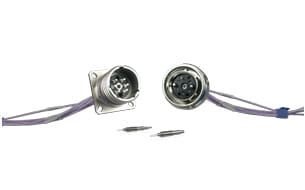

ITT Cannon’s ARINC 801-compatible Fiber Optic Series is an end-to-end solution featuring connectors, termini, and cable harnesses that enable the transmission of high-speed data, video, and signal transmission in harsh environments, where performance, integrity, and reliability are essential. Designed for use in commercial aerospace, military, and shipboard applications that require quick, accurate, and reliable transfer of large amounts of data, ARINC 801-compatible interconnects are fast, lightweight, and capable of operating at transmission speeds of 10 Gb/s or more.

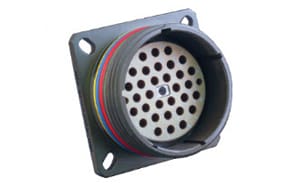

Avnet supplies the Glenair ARINC 801 system that utilizes MIL-DTL-38999 Series III type connectors and is built in accordance with high-performance MIL-Aero mechanical and environmental standards. The ARINC 801 (Series 180-159) fiber optic connection system is designed for use in RF-over-fiber applications, in-flight entertainment, avionics, and other high-speed data networking applications.
