What are Micro-Strip Connectors?

Meet the Connector: Micro-Strip Connectors

Micro-strip connectors are extremely small, low-profile board-to-wire, I/O, and wire-to-wire interconnects that offer a high-reliability solution for designers of critical applications where size and weight must be kept to an absolute minimum. They are a powerful and flexible design option for high-reliability and critical applications. Micro-strip connectors are available with a variety of latching options, termination styles, and configurations, including MIL-spec and COTS options. They are used in a variety of markets, including medical, avionics, space, military, and Test & Measurement applications.

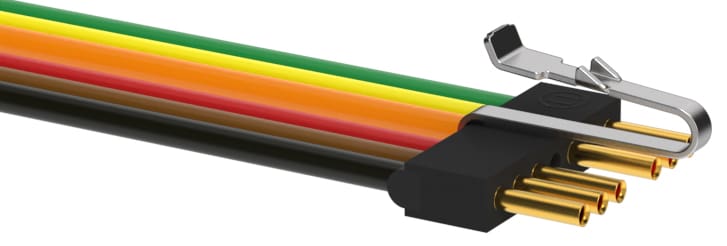

Omnetics offers a COTS Micro-Strip in a single row, pre-wired configurations with 18″ leads.

Design Notes

Standards: Micro-strip connectors are available in configurations that meet specific standards such as MIL-DTL-83513.

Contacts:

Pins – Up to 43 contacts

Spacing – Single or double row

Pitch – .050”

Termination – Solder-cup, pre-wired, PCB, surface mount, and back-to-back

Material specifications: Plastic or metal shells, one guidepost

Physical properties:  A variety of locking options are available, including screw-type and latching

Wire Type: AWG, Stranded

Environmental properties:

IP rating/Sealing – Typically used inside ruggedized equipment where ingress is not a factor

Ruggedization – Features such as high-force twist pins provide high ruggedization

Temperature range – -55 °C to 150 °C

Electrical properties:

Voltage AC/DC – 600 Vac

Current – 3 Amps

Micro-Strip, Plastic, Cable Mount Plug from AirBorn (Molex) MA11, Rugged Micro-Strip Connector, 0.050″/1.27mm Pitch, Plastic Body, Cable Mount Plug, with Mounting Holes. 1-Row, Size: 2-60

Markets and Applications

Medical, Military and Aerospace, Industrial, Test & Measurement

Micro-strips are ideal for small, ruggedized, critical applications that require high performance in a variety of markets.

ITT Cannon MT PCB Strip-Style Micro
ITT Cannon’s MT PCB strip-style Micro connectors (Microstrips) are available with latches or guide pins and three termination styles (solder cup, pigtail, harness or printed circuit leads). The MicroPinTM contact system assures maximum performance in a space-saving design package.

Suppliers

Micro-strip connectors are available in many variations from many suppliers, including:

AirBorn, ITT Cannon, Omnetics Connector Corporation, Smiths Interconnect, SV Microwave, TE Connectivity, Winchester Interconnect
